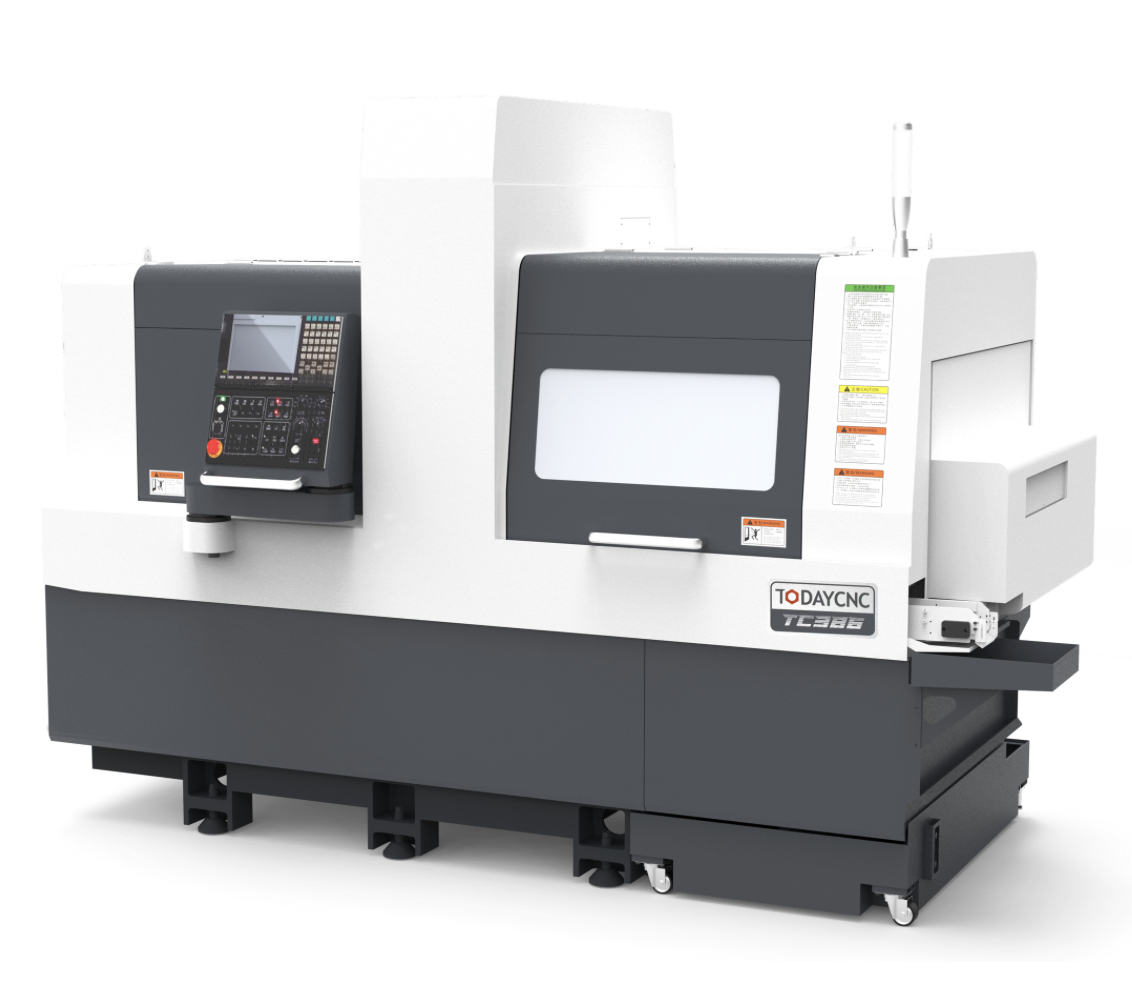

TC386 Customized High Precision Quality Swiss CNC Lathe
TC266-IV
Double spindle
6-axis function
Max machining diameter: 26mm
Motorized spindle
TC386
Double spindle
6-axis function
Max machining diameter: 38mm
Motorized spindle
FEATURES
■ Each axis uses 30 type P-precision roller guide rail and 32 type double nut C3 screw.
■ Built-in electric spindle,hydraulic clamping,ensure high precision machining.
■ Main spindle clamping is compatible with both Push forward and pull back modes, not necessary requires large diameter grinding materials.
■ Main spindle primary processing length is 320mm with guide bush.

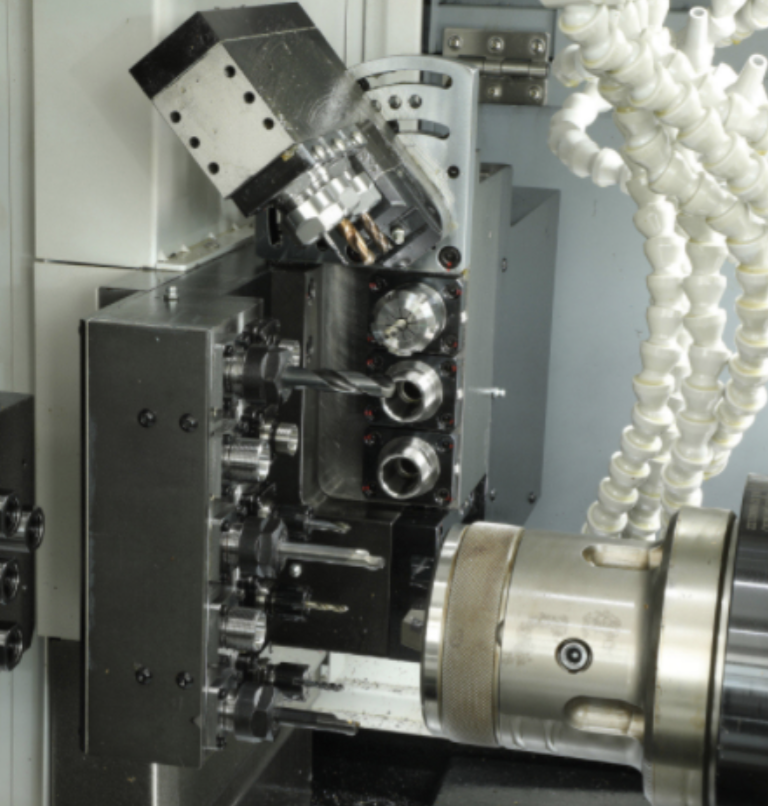

■ Main spindle side milling adopts ER25+ER20 with 2.3 high-power motors, combined with the spindle hydraulic brake, to improve milling efficiency and rigidity.

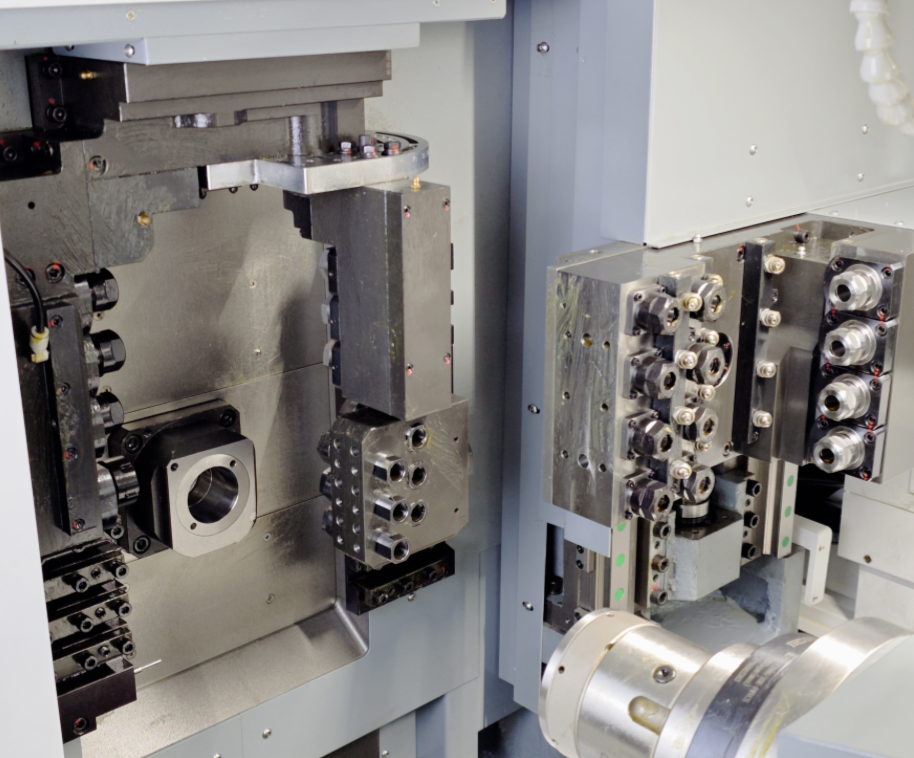

■ Main spindle tool holder adopts rectangular-ambulatory-plane layout,reduce machine volume,enhance the rigidity of the tool holder structure, and achieve fast tool change speed.
